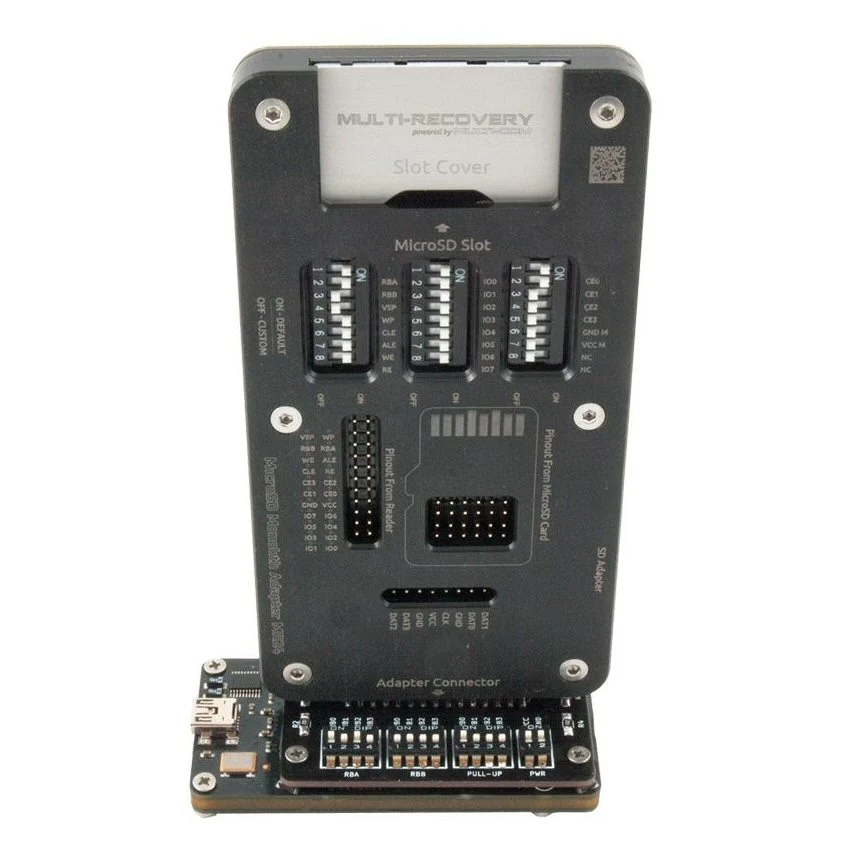

This professional 9-piece MR monolithic adapter set is designed for the advanced reading and recovery of damaged microSD cards without the need for soldering.

It contains a complete selection of MR series adapters, allowing compatibility with multiple pitch/raster configurations for NAND protocol access.

Compatible with Recovery Tools:
Note: You must have one of the following tools already to use these adapters

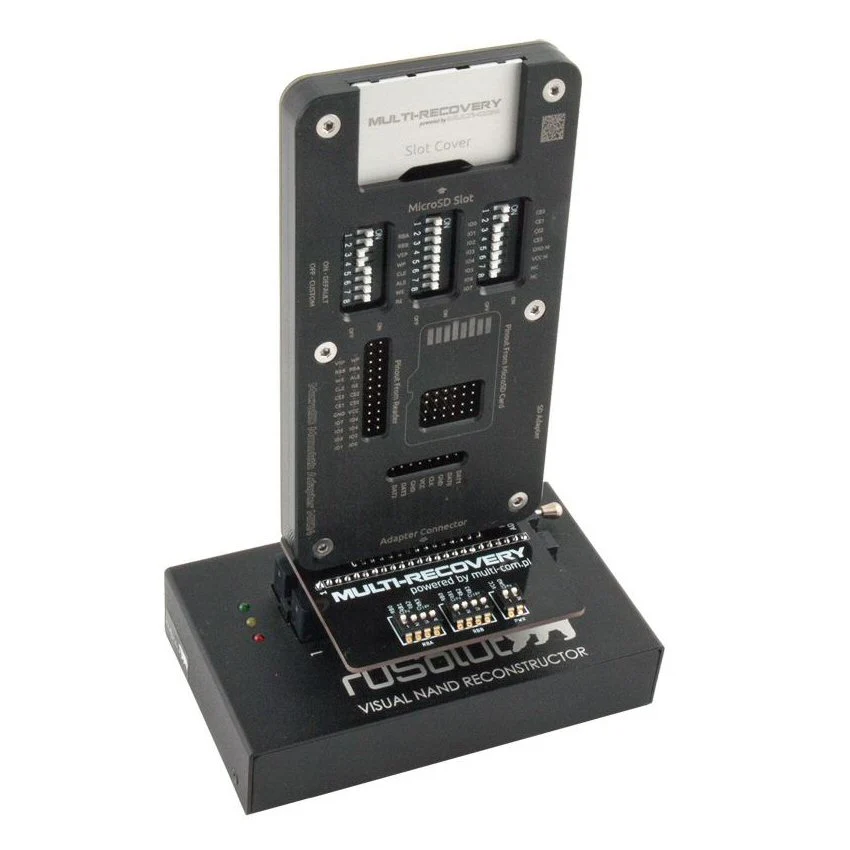

Visual NAND Reconstructor (VNR) – Rusolut
Flash Extractor (FE) – Soft Center

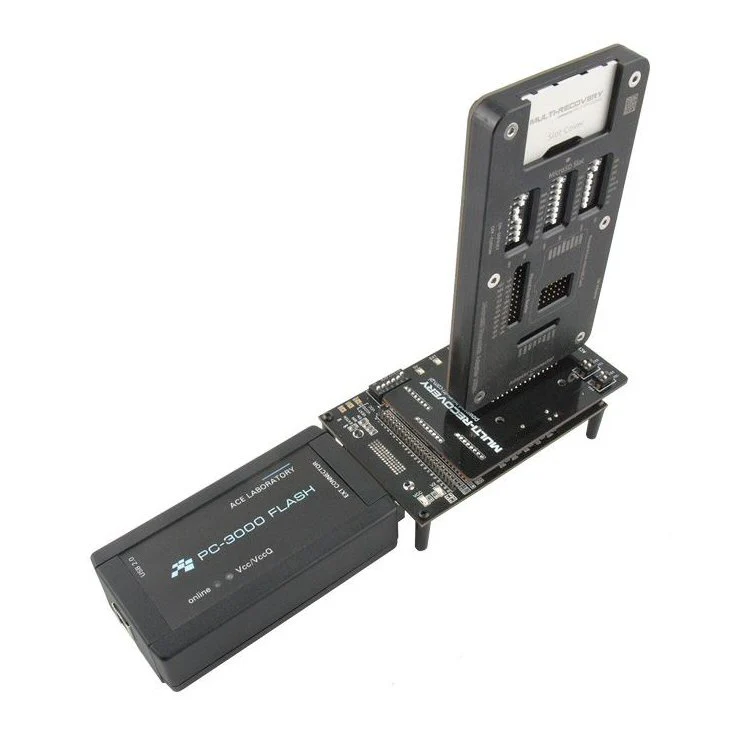

PC3000 Flash – Ace Laboratory

By using these adapters, technicians can connect directly to a microSD card’s contacts via high-quality pogo pins, avoiding the risk of pad damage caused by soldering.

Features:
Solid monolithic body made from German TecaFORM-H and brushed aluminium for exceptional durability.
Precision-manufactured PCB with 4 mil trace width and gold-plated pads to reduce signal interference.
Specially routed PCB tracks and built-in noise filters for stable NAND reading.
High-grade pogo contact pins used in specialized laboratory applications.
Supports standard pinouts of multiple raster types: MR24, MR21, MR30, MR28, MR22, MR20, MR60, MR MP08, MR MP09.
Can connect directly to an SD card reader for faster XOR analysis.
Allows connection to a logic analyser to find unsupported pinouts without soldering.



Supports standard pinouts of multiple SD types:

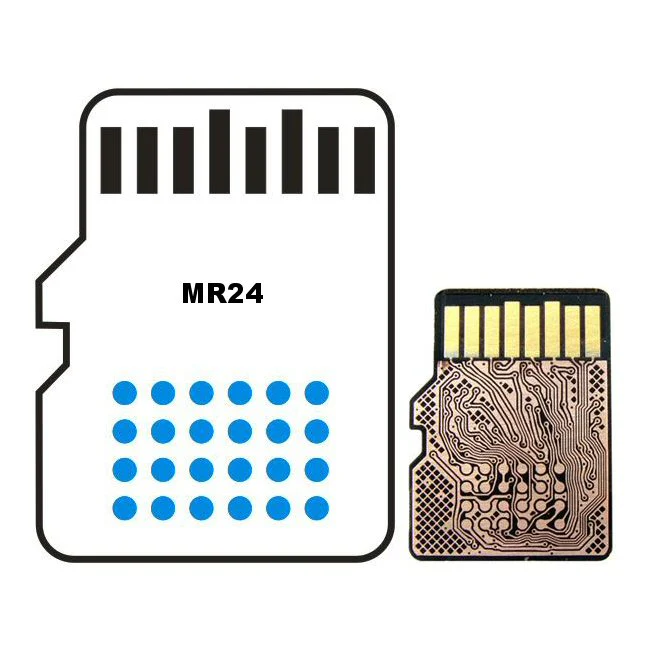

MR24

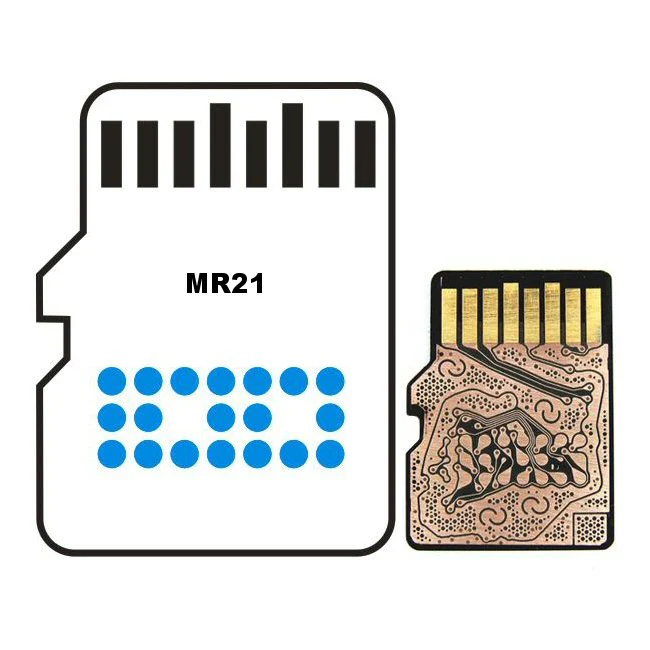

MR21

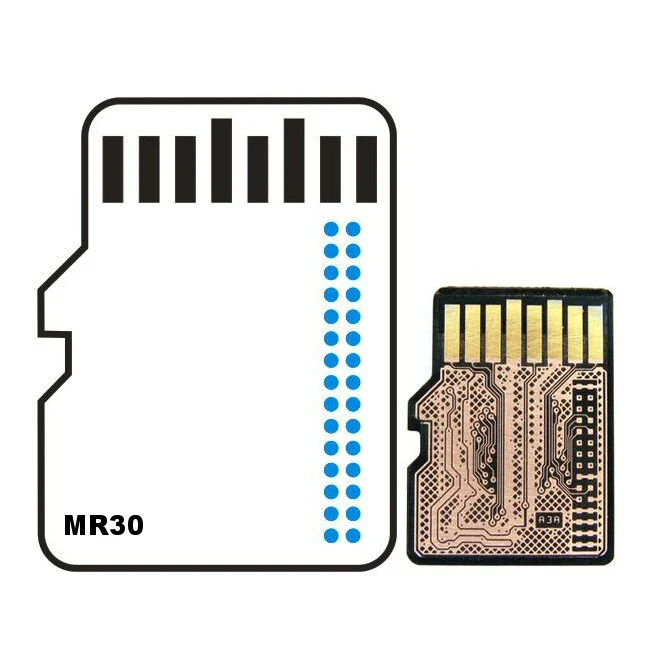

MR30

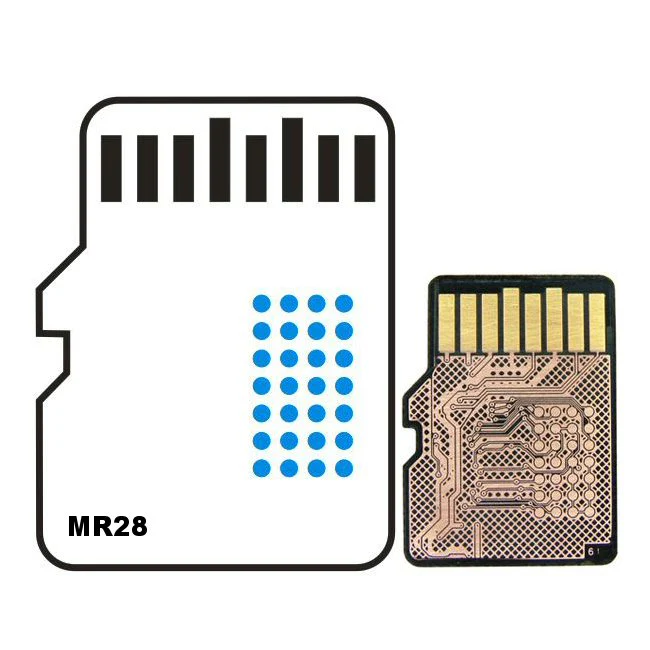

MR28

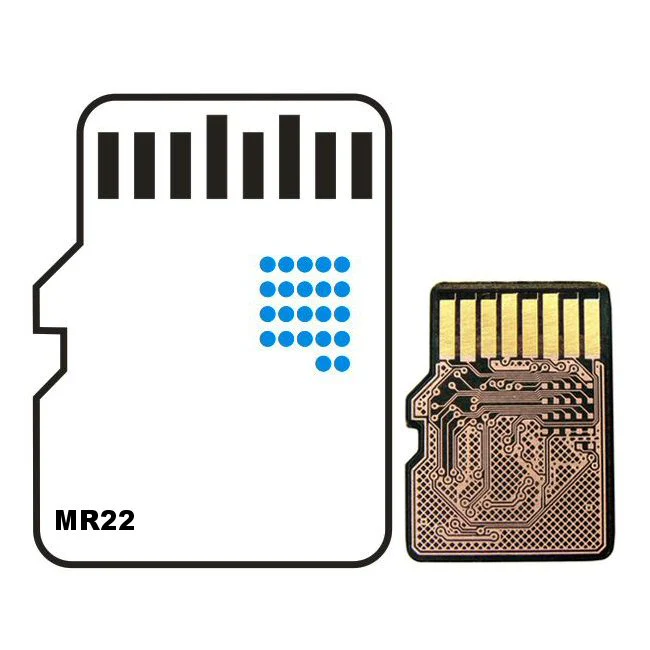

MR22
MR20

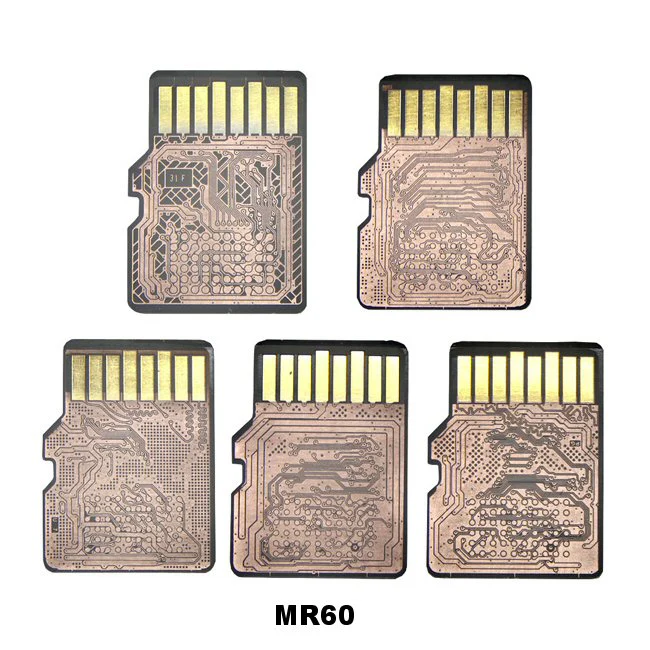

MR60
MR MP08

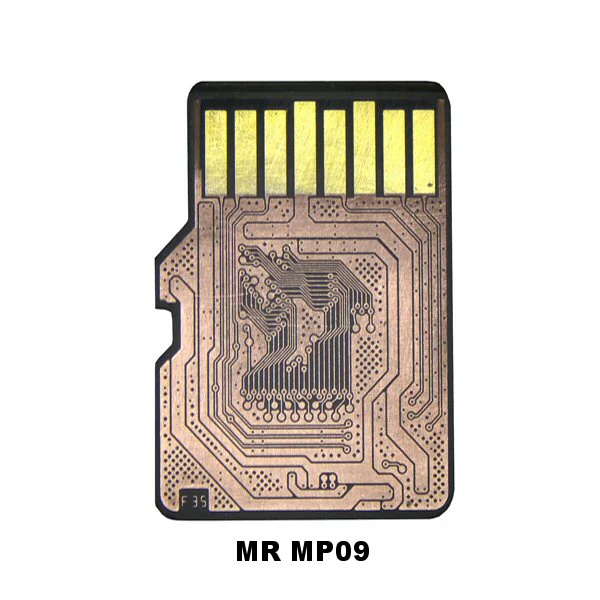

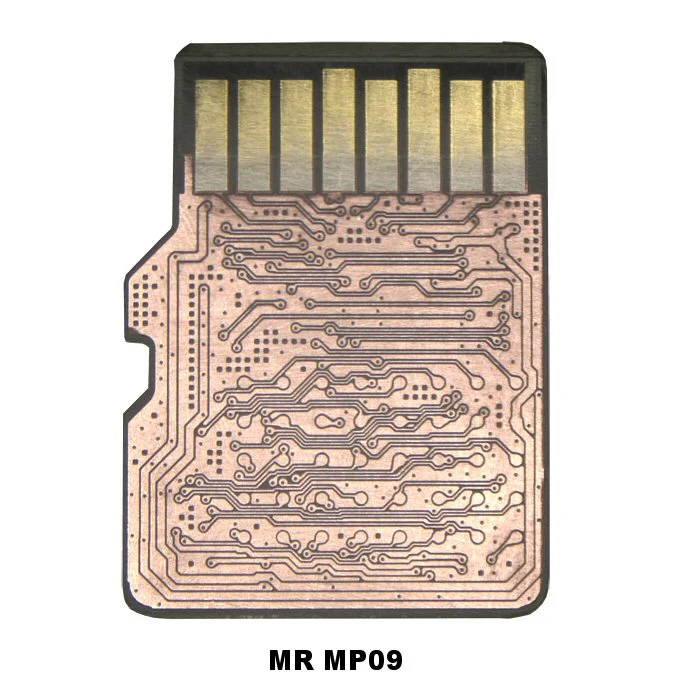

MR MP09

Note: VNR, Flash Extractor, and PC3000 devices are not included - images are for reference only.

Package Content:
9× MR microSD adapters
3× Connection PCBs (VNR, PC3000, FE)
1× Universal microSD→SD connection PCB
1× Universal soldering microSD adapter
1× Set of FF cables for Logic Analyzer/custom pinouts
1× Instruction Manual
1× Warranty Card
