The MR-V (Vias) adapter set is a professional-grade solution designed for reading microSD cards using the NAND protocol without soldering.

Note: The MR-V 01 and MR-V 02 adapters allows you to read only the second channel to read the first channel use the MR24 adapter or another adapter with a 6x4 pitch.

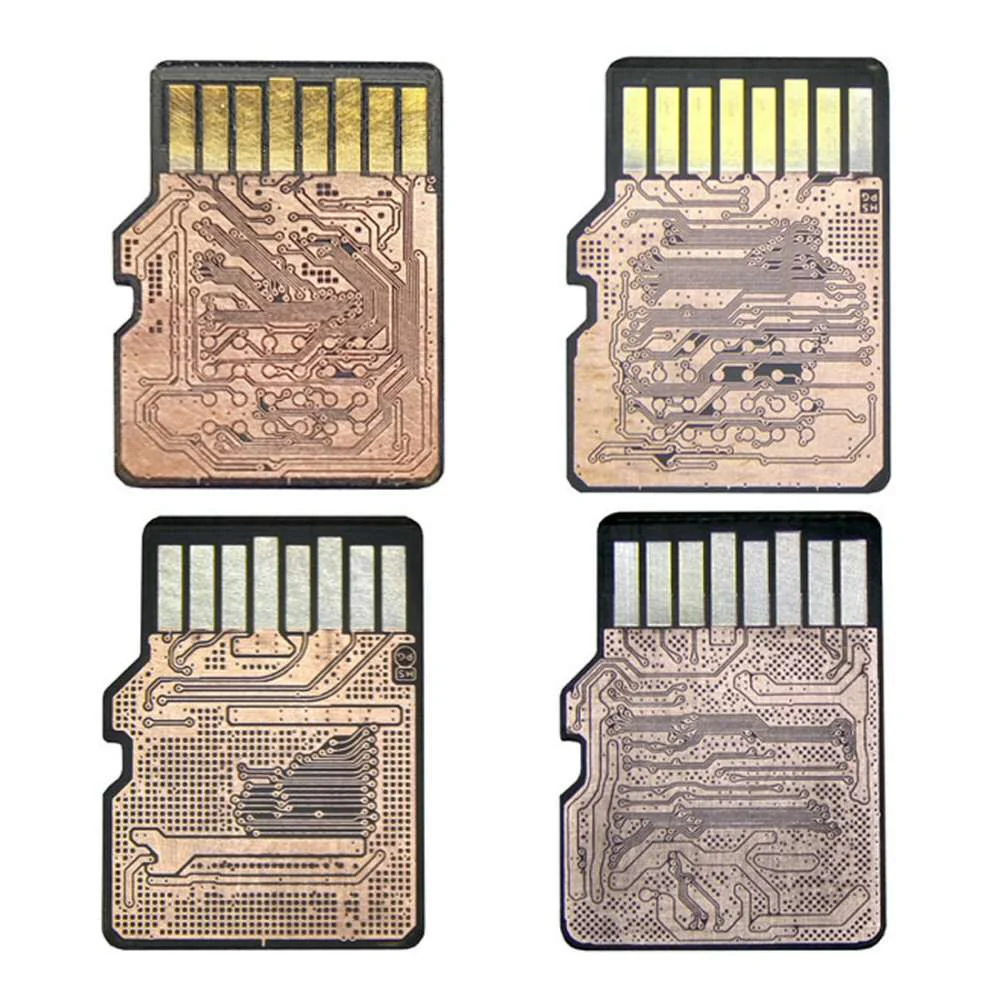

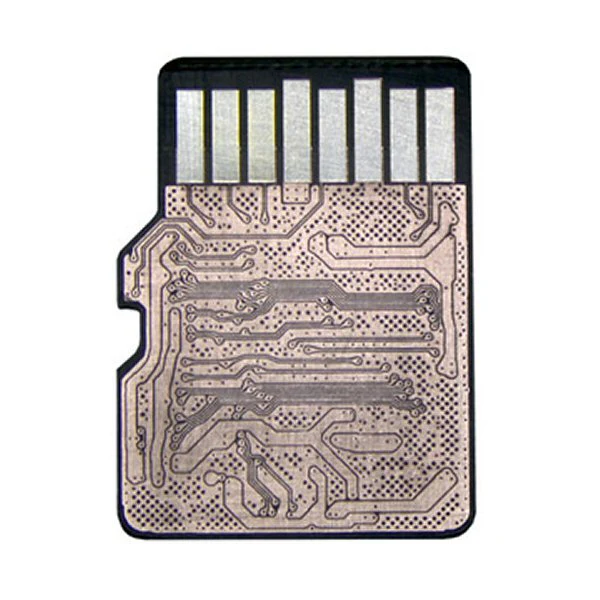

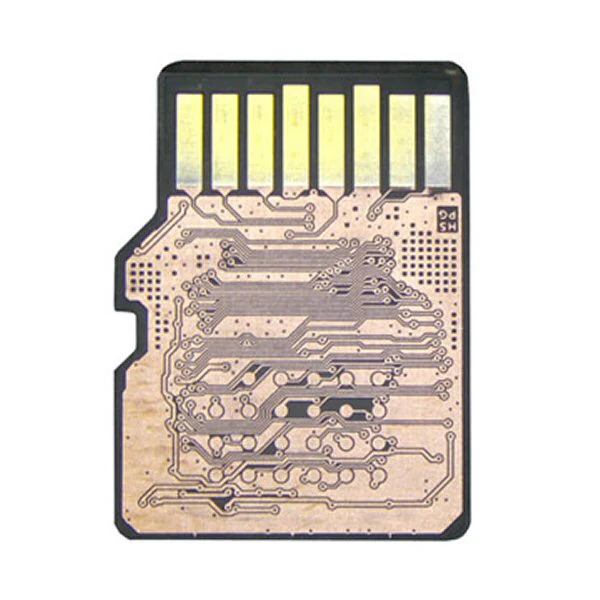

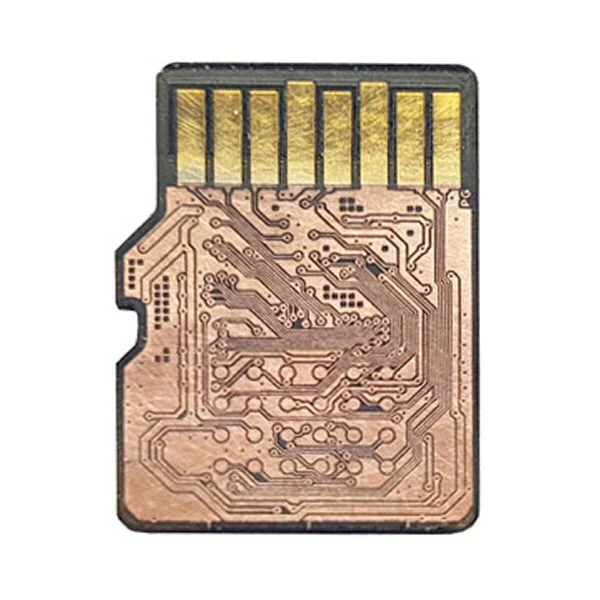

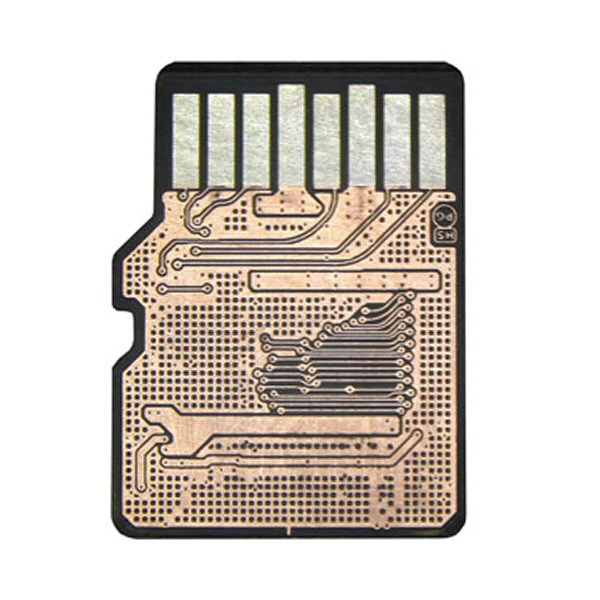

Specially developed for modern monolithic microSD designs, these adapters are essential when memory access is possible only through ultra-small vias (0.1–0.2 mm).

This set includes four precision-engineered adapters (MR-V 01, MR-V 02, MR-V 03, MR-V 04), each dedicated to specific monolith layouts.

Compatible with Recovery Tools:
Note: You must have one of the following tools already to use these adapters
Visual NAND Reconstructor (VNR) – Rusolut
Flash Extractor (FE) – Soft Center
PC3000 Flash – Ace Laboratory

By using these adapters, technicians can connect directly to a microSD card’s contacts via high-quality pogo pins, avoiding the risk of pad damage caused by soldering.

Features:
Crafted from solid TecaFORM-H (Germany) and brushed aluminium for exceptional durability.
High-precision PCB manufacturing with 4 mil traces and gold-plated pads to reduce interference.
Proprietary PCB track routing for clean NAND signal reading.
High-quality pogo pins used in professional laboratory testing.
Direct connection to SD card readers for faster XOR analysis and data extraction.



Package Content:

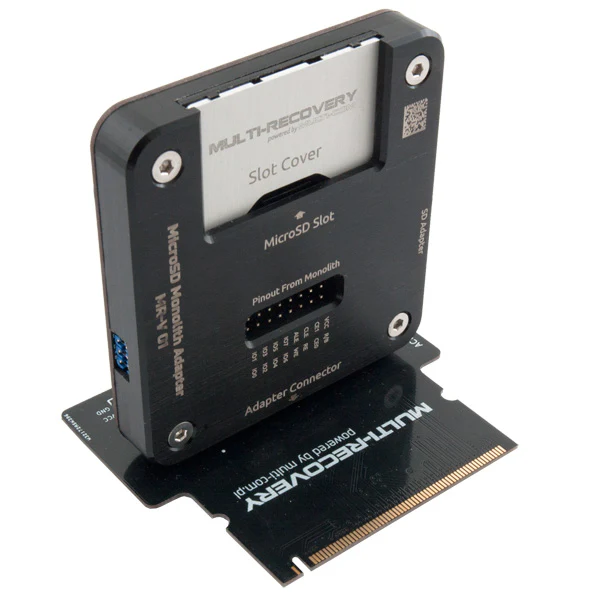

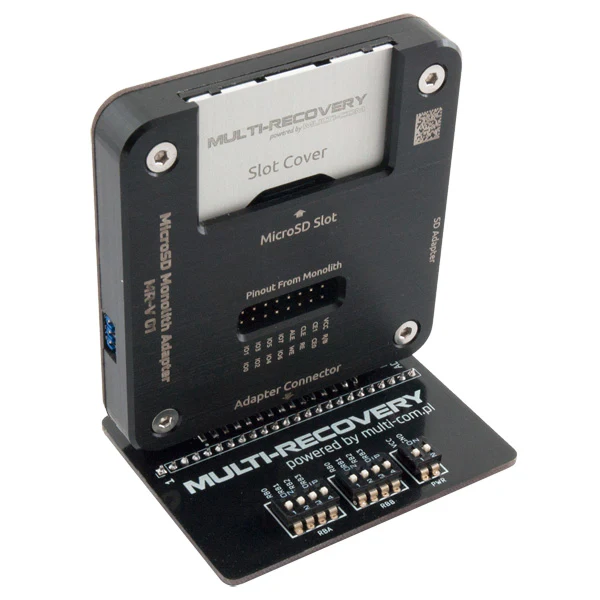

4x Adapters for monolithic microSD cards - MR-V 01, MR-V 02, MR-V 03, MR-V 04
3x Connection PCB - VNR, PC3000 lub FE
1x Connection PCB for microSD -> SD
1x Set of FF cables for Logic Analyzer connection / Custom pinout

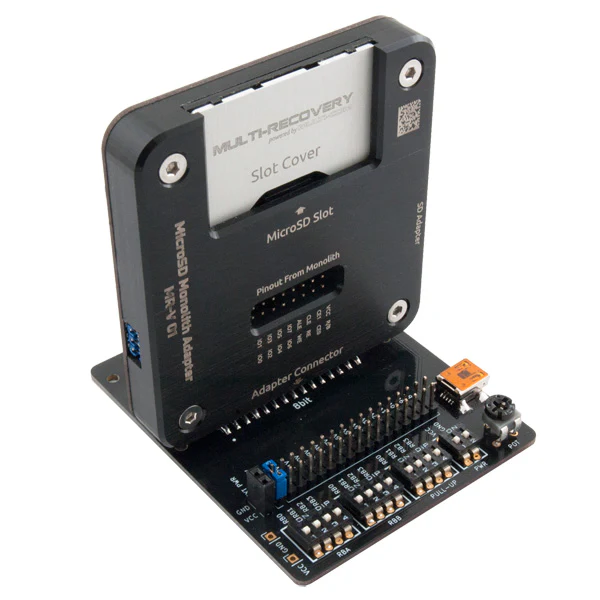

1x Adapter UNI PRO
1x Instruction
1x Warranty Card
