Thermal Imaging Analyzer Camera For iPhone Smartphone Logic Board Fault Detection Diagnostics

This camera is amazing.

simply apply power to a phone or ipad logic board and it will detect the heat of the power leakage, this helps you identify any damaged component / IC / Capacitor etc. making repair diagnostics much easier

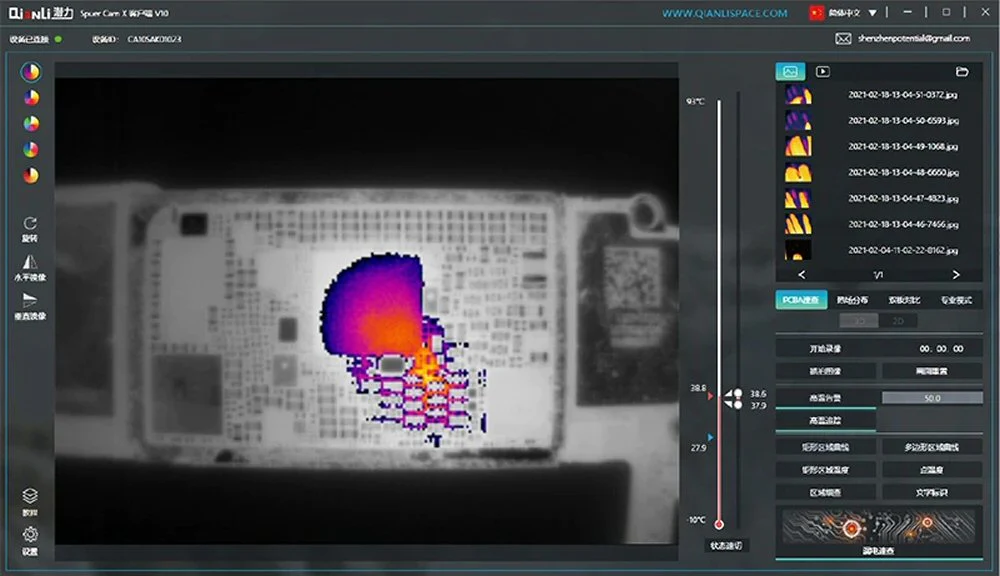

This camera is the world's first dual-spectral interleaved positioning technology, through a powerful PC-side intelligent analysis software, the use of intelligent algorithms can detect the motherboard chip, the resistance of the capacitor operating temperature; can quickly locate the capacitor current leakage, short circuit; Through the normal / abnormal motherboard comparison mode analysis, quickly and accurately identify the problem chip to help maintenance staff to troubleshoot the motherboard, greatly improving the efficiency and maintenance accuracy of a new generation of maintenance equipment.





Features:

Detector Type - Uncooled Vanadium Oxide Detector

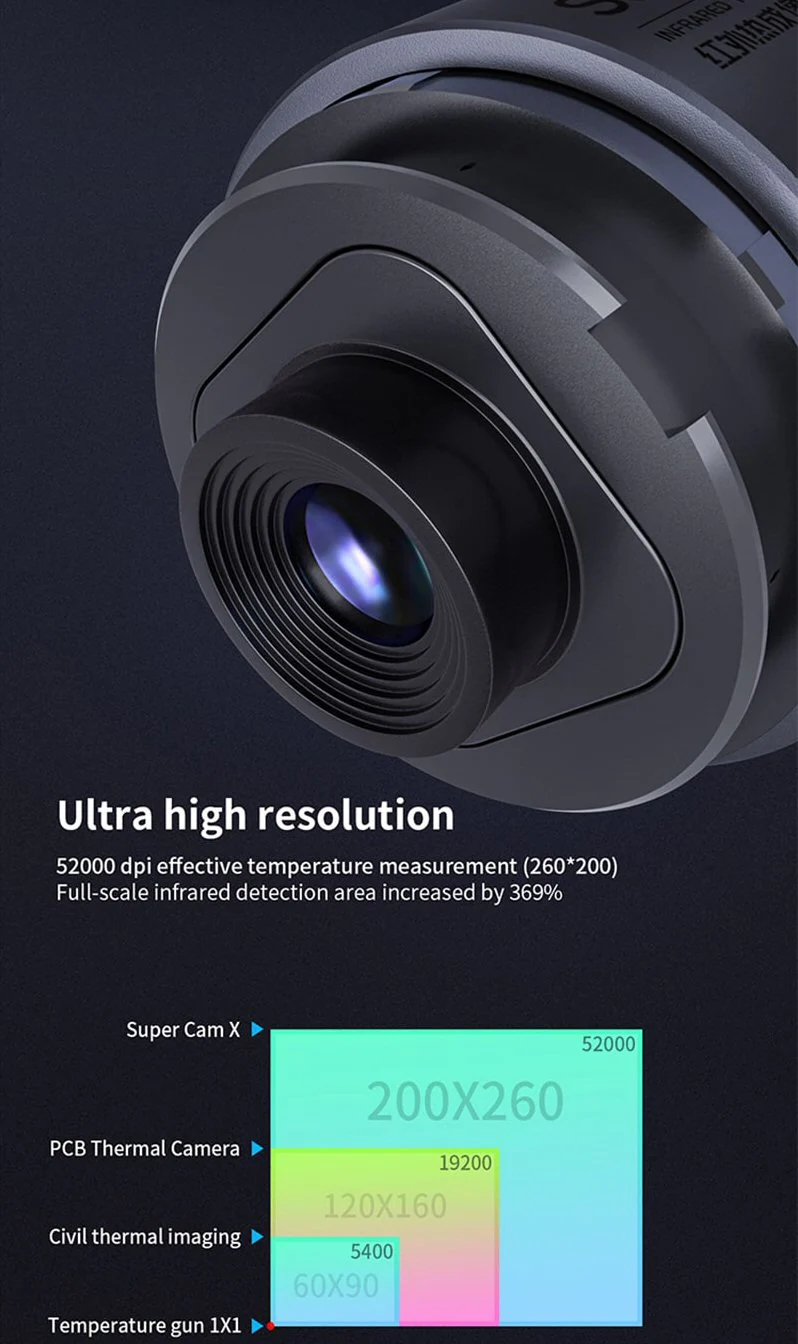

Resolution: 52000 (260x200)

Wavelength Range 7~14 um

Camera Angle 42° x 32°

Frame Frequency 25hz

Bracket Size - 15 x 16 x 16.1cm

Input Voltage 5V DC

Power Consumption <250mw

Display Mode Infrared Thermal Imaging

Interface Type Type-C To USB

Picture Storage Format JPG (640 x 480)

Video Storage Format MP4



Video:





Packing List:

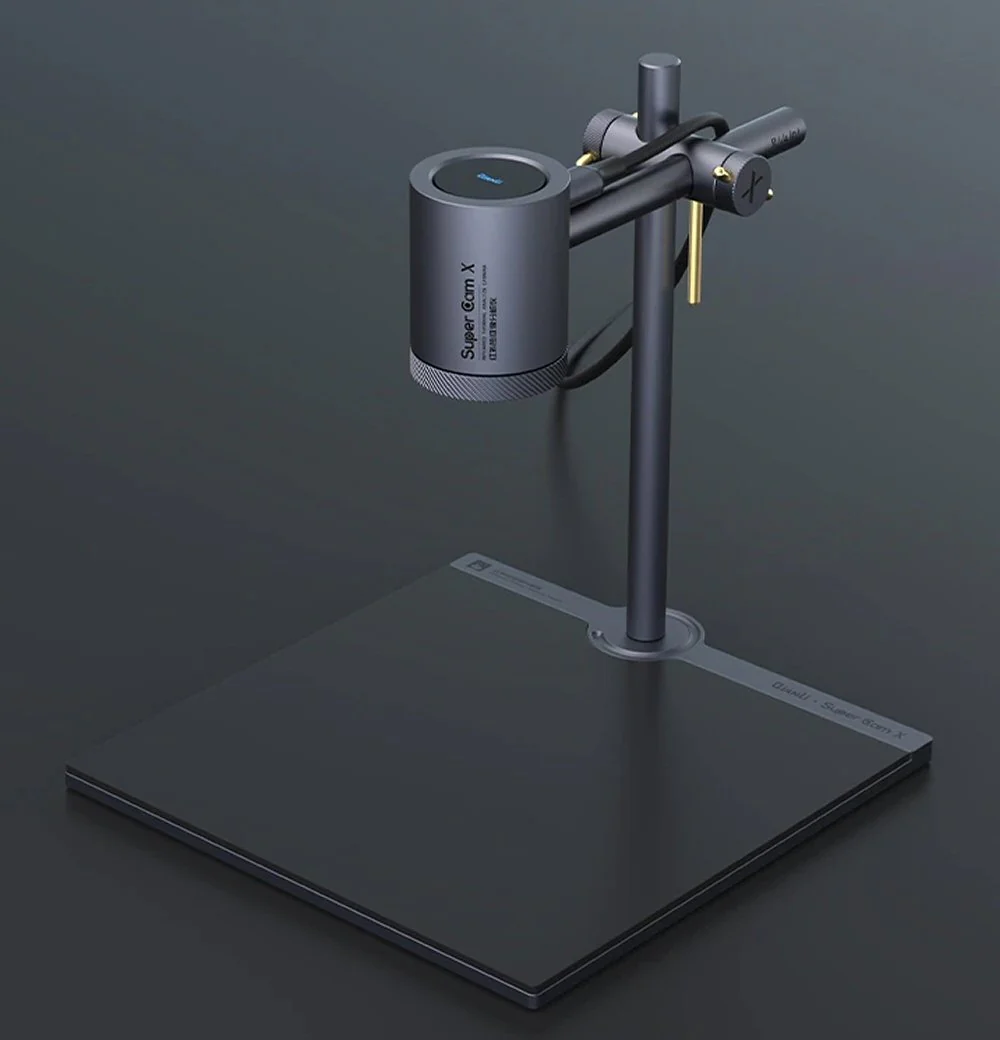

• Thermal Imaging Host

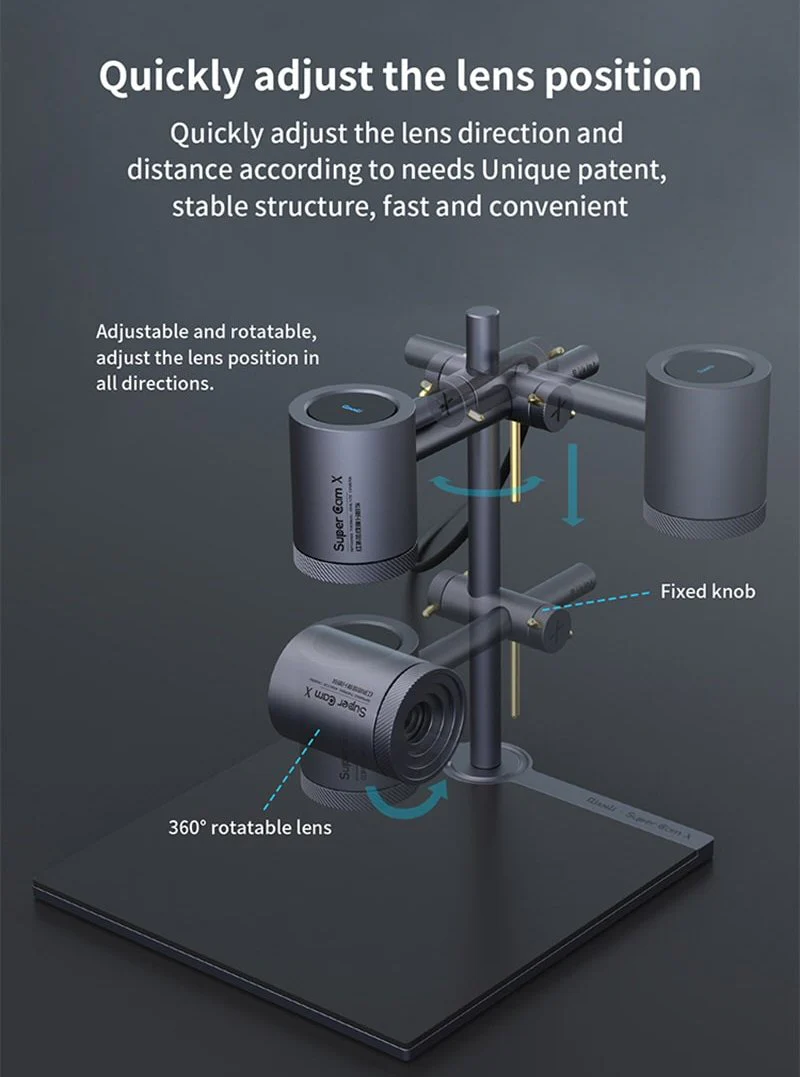

• Thermal Imaging Holder
• Thermal Imaging Base
• Power Adapter
