Jitongxue JTX BL-804 Type-C Charging Fault Test Board No Need To Dismantle
The JTX BL-804 is a professional-grade Type-C charging fault test board designed for efficient and accurate diagnosis of charging circuit problems in a wide range of USB-C devices. Ideal for technicians, repair professionals, and electronics hobbyists, this test board allows non-destructive testing without the need to dismantle the device under test, saving both time and reducing the risk of accidental damage.
Features:
Non-Invasive Design: No disassembly required. Easily test and diagnose charging faults externally through the Type-C interface.
Multi-Layer Diagnostic LEDs: Equipped with status indicator lights that clearly show voltage, current, and communication conditions in real time.
Comprehensive Compatibility: Supports a wide range of USB-C devices including smartphones, tablets, and laptops with Type-C charging ports.
Real-Time Monitoring: Measures voltage and current draw directly from the Type-C port, helping to identify faults like overvoltage, undervoltage, or irregular current flow.
Plug-and-Play Operation: Simple to use, with no drivers or software needed. Just connect and read the output.
Compact & Portable: Lightweight and small form factor make it perfect for fieldwork and bench testing alike.
Durable Construction: Built with high-quality PCB and robust connectors to withstand regular use in professional environments.
Product Specifications:
Model: BL-804
Interface: USB Type-C
Supported Devices: Compatible with various brands of mobile phones and computers featuring Type-C charging ports

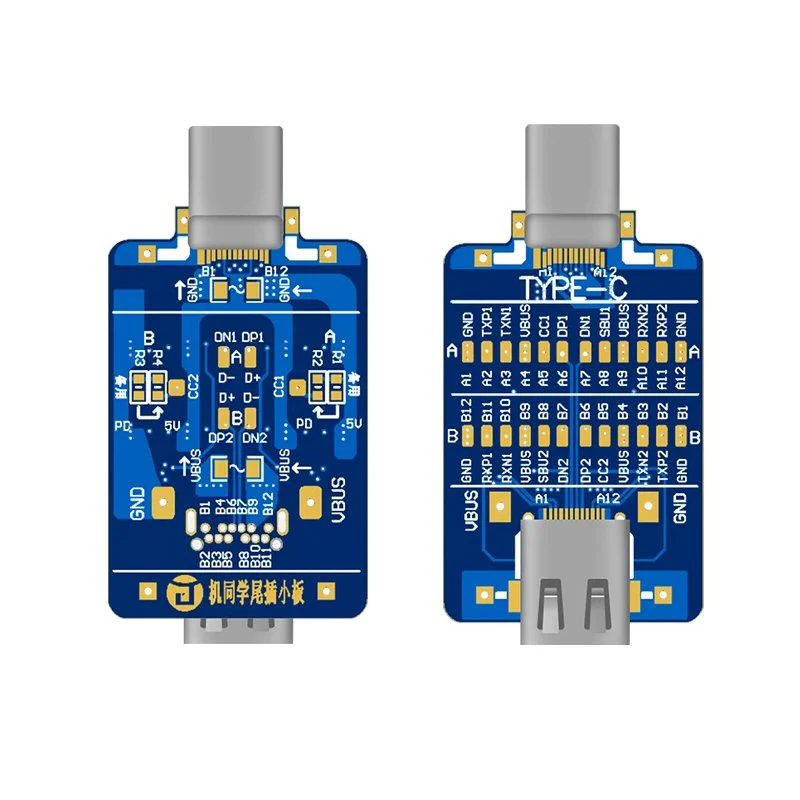

Detection Points: 24 integrated test points for comprehensive charging circuit analysis
Measurement Capabilities: Allows measurement of voltage and resistance values using a multimeter
Real-Time Monitoring: Provides real-time monitoring of resistance and voltage to accurately assess the charging circuit
Non-Invasive Testing: Enables fault detection without disassembling the device, preserving device integrity
Usage: Ideal for diagnosing faulty charging ports, verifying USB-C cable and charger performance, and troubleshooting battery or power IC issues
How to Use:
1, Connect the BL-804 test board to the device's Type-C port.

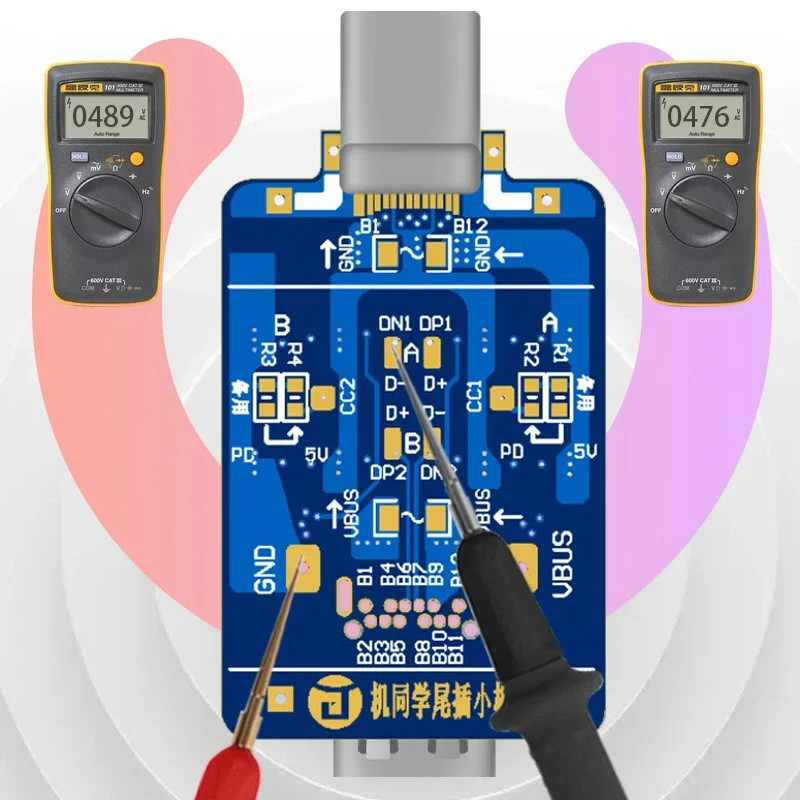

2, Use a multimeter to measure voltage and resistance at the designated test points.
3, Compare the readings with standard values or those from a functioning device to identify anomalies.
3, Diagnose issues such as short circuits, abnormal voltage levels, or faulty charging circuits based on the measurements
Ā
This an essential tool for anyone working with USB-C devices, offering fast, reliable, and safe diagnostics without ever needing to open up the device. Save time, avoid unnecessary repairs, and enhance your workflow with this innovative test board.
